Container Context

---

Container Information

Field	Value
Name	Application
Type	Application
Description	Main application container
---

Components

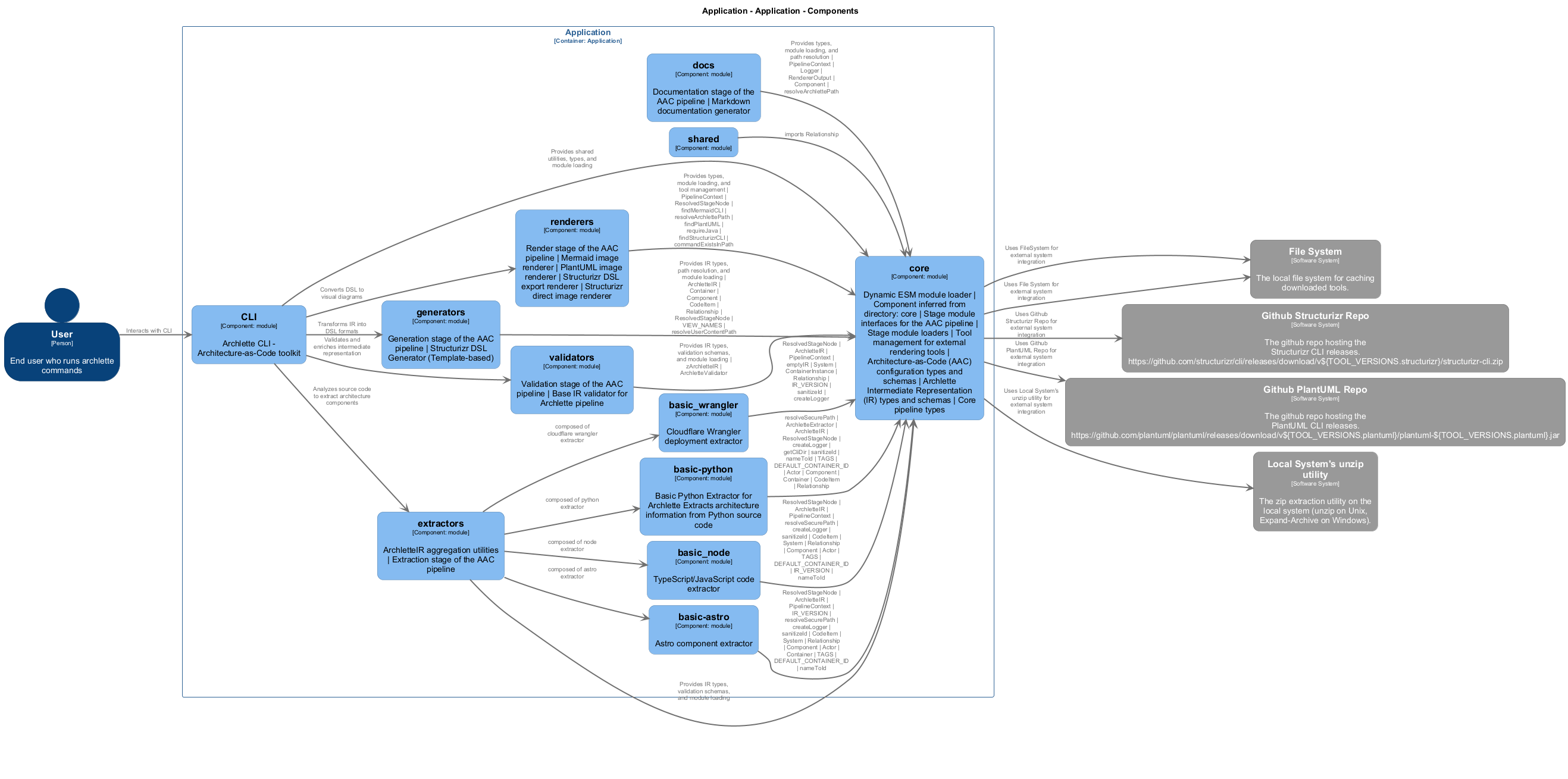

Component View

Component Details

Component	Type	Description	Code
CLI	module	Archlette CLI - Architecture-as-Code toolkit	View
extractors	module	ArchletteIR aggregation utilities | Extraction stage of the AAC pipeline	View
validators	module	Validation stage of the AAC pipeline | Base IR validator for Archlette pipeline	View
generators	module	Generation stage of the AAC pipeline | Structurizr DSL Generator (Template-based)	View
renderers	module	Render stage of the AAC pipeline | Mermaid image renderer | PlantUML image renderer | Structurizr DSL export renderer | Structurizr direct image renderer	View
docs	module	Documentation stage of the AAC pipeline | Markdown documentation generator	View
core	module	Dynamic ESM module loader | Component inferred from directory: core | Stage module interfaces for the AAC pipeline | Stage module loaders | Tool management for external rendering tools | Architecture-as-Code (AAC) configuration types and schemas | Archlette Intermediate Representation (IR) types and schemas | Core pipeline types	View
basic-astro	module	Astro component extractor	View
basic_node	module	TypeScript/JavaScript code extractor	View
basic-python	module	Basic Python Extractor for Archlette Extracts architecture information from Python source code	View
basic_wrangler	module	Cloudflare Wrangler deployment extractor	View
shared	module	-	View

---
