core — Code View¶
← Back to Container | ← Back to System
Component Information¶
| Field | Value |
|---|---|
| Component | core |
| Container | Application |
| Type | module |
| Description | Dynamic ESM module loader | Component inferred from directory: core | Stage module interfaces for the AAC pipeline | Stage module loaders | Tool management for external rendering tools | Architecture-as-Code (AAC) configuration types and schemas | Archlette Intermediate Representation (IR) types and schemas | Core pipeline types |
| --- |
Code Structure¶

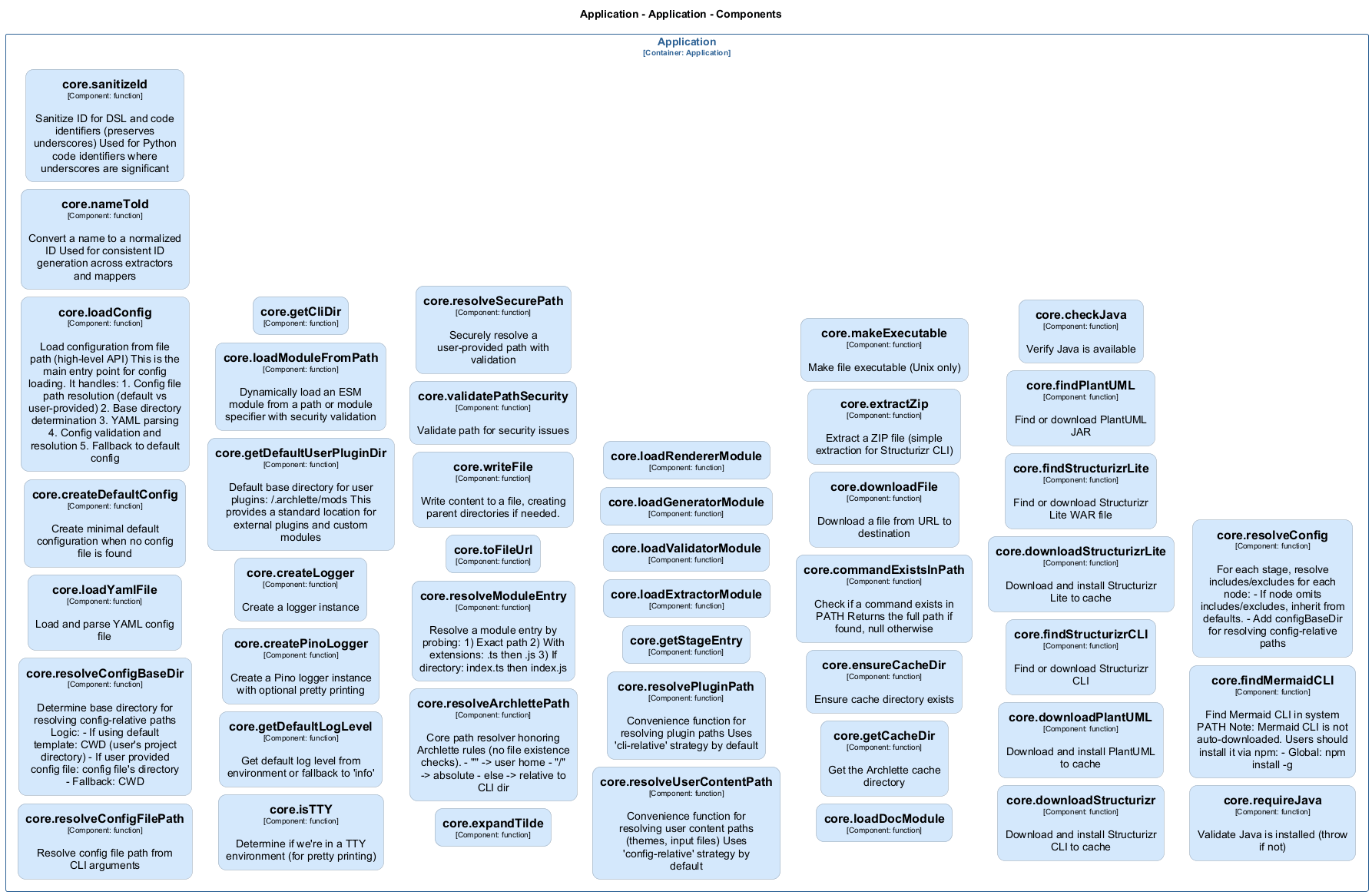

Class Diagram¶
Code Elements¶
45 code element(s)
#### Functions ##### `resolveConfigFilePath()` Resolve config file path from CLI arguments | Field | Value | | --- | --- | | **Type** | `function` | | **Visibility** | `public` | | **Returns** | `import("C:/Users/chris/git/archlette/src/core/config-resolver").ResolvedConfigFile` - Resolved config file information || **Location** | `C:/Users/chris/git/archlette/src/core/config-resolver.ts:70` | **Parameters:** - `userProvidedPath`:string — - Path from -f argument (or undefined for default)
**Examples:**
---
##### `resolveConfigBaseDir()`
Determine base directory for resolving config-relative paths
Logic:
- If using default template: CWD (user's project directory)
- If user provided config file: config file's directory
- Fallback: CWD
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `string` - Base directory for config-relative path resolution || **Location** | `C:/Users/chris/git/archlette/src/core/config-resolver.ts:117` |
**Parameters:**
- `configPath`: string — - Absolute path to config file (or undefined)- `isDefaultTemplate`: boolean — - Whether using default template
**Examples:**
---
##### `loadYamlFile()`
Load and parse YAML config file
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `unknown` - Parsed config object or null if file doesn't exist/is invalid || **Location** | `C:/Users/chris/git/archlette/src/core/config-resolver.ts:141` |
**Parameters:**
- `filePath`: string — - Absolute path to YAML file
---
##### `createDefaultConfig()`
Create minimal default configuration when no config file is found
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `import("C:/Users/chris/git/archlette/src/core/types-aac").ResolvedAACConfig` - Default configuration || **Location** | `C:/Users/chris/git/archlette/src/core/config-resolver.ts:164` |
**Parameters:**
- `baseDir`: string — - Base directory for output paths
---
##### `loadConfig()`
Load configuration from file path (high-level API)
This is the main entry point for config loading. It handles:
1. Config file path resolution (default vs user-provided)
2. Base directory determination
3. YAML parsing
4. Config validation and resolution
5. Fallback to default config
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `import("C:/Users/chris/git/archlette/src/core/config-resolver").LoadedConfig` - Loaded configuration with all metadata || **Location** | `C:/Users/chris/git/archlette/src/core/config-resolver.ts:210` |
**Parameters:**
- `userProvidedPath`: string — - Path from -f argument (or undefined for default)
**Examples:**
---
##### `nameToId()`
Convert a name to a normalized ID
Used for consistent ID generation across extractors and mappers
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `string` - Normalized ID (lowercase, hyphenated, alphanumeric) || **Location** | `C:/Users/chris/git/archlette/src/core/constants.ts:56` |
**Parameters:**
- `name`: string — - The name to convert (component, actor, etc.)
**Examples:**
---
##### `sanitizeId()`
Sanitize ID for DSL and code identifiers (preserves underscores)
Used for Python code identifiers where underscores are significant
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `string` - Sanitized ID (lowercase alphanumeric and underscores only) || **Location** | `C:/Users/chris/git/archlette/src/core/constants.ts:78` |
**Parameters:**
- `id`: string — - The ID to sanitize
**Examples:**
---
##### `isTTY()`
Determine if we're in a TTY environment (for pretty printing)
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `boolean` || **Location** | `C:/Users/chris/git/archlette/src/core/logger.ts:43` |
---
##### `getDefaultLogLevel()`
Get default log level from environment or fallback to 'info'
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `import("C:/Users/chris/git/archlette/src/core/logger").LogLevel` || **Location** | `C:/Users/chris/git/archlette/src/core/logger.ts:50` |
---
##### `createPinoLogger()`
Create a Pino logger instance with optional pretty printing
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `PinoLogger` || **Location** | `C:/Users/chris/git/archlette/src/core/logger.ts:66` |
**Parameters:**
- `level`: import("C:/Users/chris/git/archlette/src/core/logger").LogLevel- `pretty`: boolean
---
##### `createLogger()`
Create a logger instance
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `import("C:/Users/chris/git/archlette/src/core/logger").Logger` - Logger instance || **Location** | `C:/Users/chris/git/archlette/src/core/logger.ts:131` |
**Parameters:**
- `options`: import("C:/Users/chris/git/archlette/src/core/logger").LoggerOptions — - Logger configuration
**Examples:**
---
##### `getDefaultUserPluginDir()`
Default base directory for user plugins: ~/.archlette/mods
This provides a standard location for external plugins and custom modules
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/core/module-loader.ts:59` |
---
##### `loadModuleFromPath()`
Dynamically load an ESM module from a path or module specifier with security validation
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Async** | Yes || **Returns** | `Promisestring — - Module specifier (relative path, absolute path, or ~/ path)- `exts`: (".ts" | ".js")[] — - File extensions to probe (in order of preference)- `allowedAbsolutePaths`: string[] — - Optional allowlist for absolute plugin paths (external plugins)
Defaults to [~/.archlette/mods] for user plugins
**Examples:**
---
##### `getCliDir()`
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/core/path-resolver.ts:17` |
---
##### `expandTilde()`
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/core/path-resolver.ts:24` |
**Parameters:**
- `p`: string- `homeDir`: string
---
##### `resolveArchlettePath()`
Core path resolver honoring Archlette rules (no file existence checks).
- "~" -> user home
- "/" -> absolute
- else -> relative to CLI dir
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/core/path-resolver.ts:42` |
**Parameters:**
- `input`: string- `opts`: { cliDir: string; }
---
##### `resolveModuleEntry()`
Resolve a module entry by probing:
1) Exact path
2) With extensions: .ts then .js
3) If directory: index.ts then index.js
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/core/path-resolver.ts:64` |
**Parameters:**
- `input`: string- `opts`: { cliDir: string; wantedExts?: (".ts" | ".js")[]; }
---
##### `toFileUrl()`
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/core/path-resolver.ts:100` |
**Parameters:**
- `p`: string
---
##### `writeFile()`
Write content to a file, creating parent directories if needed.
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `void` || **Location** | `C:/Users/chris/git/archlette/src/core/path-resolver.ts:110` |
**Parameters:**
- `filename`: string — - Absolute path to the file- `content`: string — - Content to write
---
##### `validatePathSecurity()`
Validate path for security issues
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `{ isSecure: boolean; warnings: string[]; }` || **Location** | `C:/Users/chris/git/archlette/src/core/path-security.ts:58` |
**Parameters:**
- `userPath`: string- `resolvedPath`: string- `baseDir`: string- `strategy`: import("C:/Users/chris/git/archlette/src/core/path-security").PathResolutionStrategy- `allowedAbsolutePaths`: string[]
---
##### `resolveSecurePath()`
Securely resolve a user-provided path with validation
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `import("C:/Users/chris/git/archlette/src/core/path-security").ResolvedSecurePath` - Resolved path with security metadata || **Location** | `C:/Users/chris/git/archlette/src/core/path-security.ts:203` |
**Parameters:**
- `userPath`: string — - Path provided by user (from config, CLI, etc.)- `options`: import("C:/Users/chris/git/archlette/src/core/path-security").SecurePathOptions — - Resolution and validation options
**Examples:**
---
##### `resolveUserContentPath()`
Convenience function for resolving user content paths (themes, input files)
Uses 'config-relative' strategy by default
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `import("C:/Users/chris/git/archlette/src/core/path-security").ResolvedSecurePath` || **Location** | `C:/Users/chris/git/archlette/src/core/path-security.ts:289` |
**Parameters:**
- `userPath`: string- `configBaseDir`: string- `allowedExtensions`: string[]- `allowedAbsolutePaths`: string[]
---
##### `resolvePluginPath()`
Convenience function for resolving plugin paths
Uses 'cli-relative' strategy by default
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `import("C:/Users/chris/git/archlette/src/core/path-security").ResolvedSecurePath` || **Location** | `C:/Users/chris/git/archlette/src/core/path-security.ts:308` |
**Parameters:**
- `userPath`: string- `cliDir`: string- `allowedExtensions`: string[]- `allowedAbsolutePaths`: string[]
---
##### `getStageEntry()`
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `import("C:/Users/chris/git/archlette/src/core/stage-entry").StageEntry` || **Location** | `C:/Users/chris/git/archlette/src/core/stage-entry.js:12` |
**Parameters:**
- `mod`: unknown
---
##### `loadExtractorModule()`
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Async** | Yes || **Returns** | `Promise<{ entry: Function; resolved: string; }>` || **Location** | `C:/Users/chris/git/archlette/src/core/stage-module-loader.ts:13` |
**Parameters:**
- `modulePath`: string
---
##### `loadValidatorModule()`
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Async** | Yes || **Returns** | `Promise<{ entry: Function; resolved: string; }>` || **Location** | `C:/Users/chris/git/archlette/src/core/stage-module-loader.ts:26` |
**Parameters:**
- `modulePath`: string
---
##### `loadGeneratorModule()`
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Async** | Yes || **Returns** | `Promise<{ entry: Function; resolved: string; }>` || **Location** | `C:/Users/chris/git/archlette/src/core/stage-module-loader.ts:39` |
**Parameters:**
- `modulePath`: string
---
##### `loadRendererModule()`
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Async** | Yes || **Returns** | `Promise<{ entry: Function; resolved: string; }>` || **Location** | `C:/Users/chris/git/archlette/src/core/stage-module-loader.ts:52` |
**Parameters:**
- `modulePath`: string
---
##### `loadDocModule()`
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Async** | Yes || **Returns** | `Promise<{ entry: Function; resolved: string; }>` || **Location** | `C:/Users/chris/git/archlette/src/core/stage-module-loader.ts:65` |
**Parameters:**
- `modulePath`: string
---
##### `getCacheDir()`
Get the Archlette cache directory
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/core/tool-manager.ts:66` |
---
##### `ensureCacheDir()`
Ensure cache directory exists
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/core/tool-manager.ts:74` |
---
##### `commandExistsInPath()`
Check if a command exists in PATH
Returns the full path if found, null otherwise
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/core/tool-manager.ts:86` |
**Parameters:**
- `command`: string
---
##### `downloadFile()`
Download a file from URL to destination
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Async** | Yes || **Returns** | `Promisestring- `dest`: string- `log`: import("C:/Users/chris/git/archlette/src/core/logger").Logger
---
##### `extractZip()`
Extract a ZIP file (simple extraction for Structurizr CLI)
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Async** | Yes || **Returns** | `Promisestring- `destDir`: string- `log`: import("C:/Users/chris/git/archlette/src/core/logger").Logger
---
##### `makeExecutable()`
Make file executable (Unix only)
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `void` || **Location** | `C:/Users/chris/git/archlette/src/core/tool-manager.ts:174` |
**Parameters:**
- `filePath`: string
---
##### `downloadStructurizr()`
Download and install Structurizr CLI to cache
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Async** | Yes || **Returns** | `Promisestring- `log`: import("C:/Users/chris/git/archlette/src/core/logger").Logger
---
##### `downloadPlantUML()`
Download and install PlantUML to cache
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Async** | Yes || **Returns** | `Promisestring- `log`: import("C:/Users/chris/git/archlette/src/core/logger").Logger
---
##### `findStructurizrCLI()`
Find or download Structurizr CLI
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Async** | Yes || **Returns** | `Promiseimport("C:/Users/chris/git/archlette/src/core/logger").Logger — - Optional logger
---
##### `downloadStructurizrLite()`
Download and install Structurizr Lite to cache
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Async** | Yes || **Returns** | `Promisestring- `log`: import("C:/Users/chris/git/archlette/src/core/logger").Logger
---
##### `findStructurizrLite()`
Find or download Structurizr Lite WAR file
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Async** | Yes || **Returns** | `Promiseimport("C:/Users/chris/git/archlette/src/core/logger").Logger — - Optional logger
---
##### `findPlantUML()`
Find or download PlantUML JAR
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Async** | Yes || **Returns** | `Promiseimport("C:/Users/chris/git/archlette/src/core/logger").Logger — - Optional logger
---
##### `checkJava()`
Verify Java is available
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `string` - Java version string if available, null otherwise || **Location** | `C:/Users/chris/git/archlette/src/core/tool-manager.ts:371` |
---
##### `requireJava()`
Validate Java is installed (throw if not)
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `void` || **Location** | `C:/Users/chris/git/archlette/src/core/tool-manager.ts:392` |
---
##### `findMermaidCLI()`
Find Mermaid CLI in system PATH
Note: Mermaid CLI is not auto-downloaded. Users should install it via npm:
- Global: npm install -g
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `string` - Path to mmdc executable || **Location** | `C:/Users/chris/git/archlette/src/core/tool-manager.ts:421` |
**Parameters:**
- `log`: import("C:/Users/chris/git/archlette/src/core/logger").Logger — - Optional logger
---
##### `resolveConfig()`
For each stage, resolve includes/excludes for each node:
- If node omits includes/excludes, inherit from defaults.
- Add configBaseDir for resolving config-relative paths
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Returns** | `import("C:/Users/chris/git/archlette/src/core/types-aac").ResolvedAACConfig` || **Location** | `C:/Users/chris/git/archlette/src/core/types-aac.ts:145` |
**Parameters:**
- `raw`: unknown- `options`: { configBaseDir?: string; }
---
