Component Information

Field	Value
Component	generators
Container	Application
Type	module
Description	Generation stage of the AAC pipeline | Structurizr DSL Generator (Template-based)
---

Code Structure

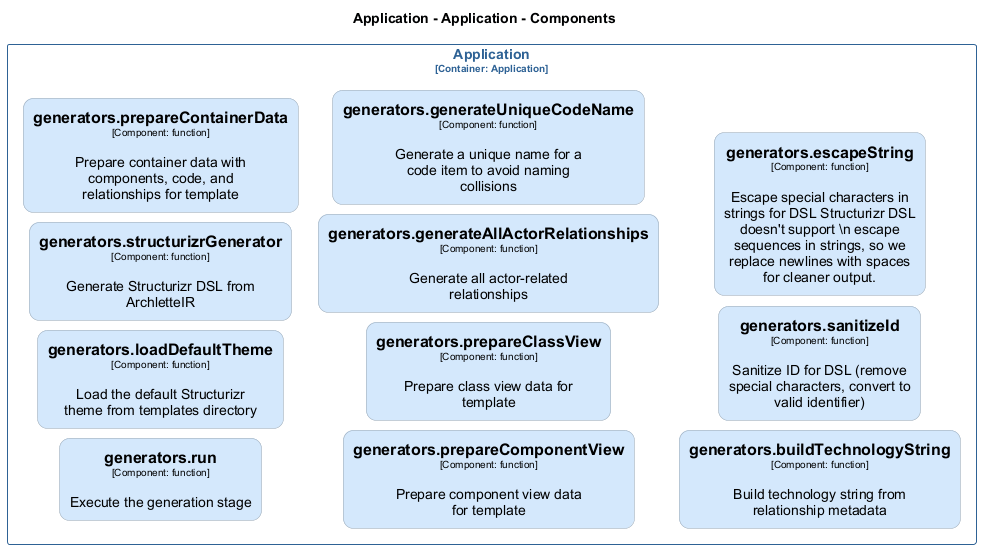

Class Diagram

Code Elements

11 code element(s)

#### Functions ##### `run()` Execute the generation stage | Field | Value | | --- | --- | | **Type** | `function` | | **Visibility** | `public` | | **Async** | Yes || **Returns** | `Promise` || **Location** | `C:/Users/chris/git/archlette/src/3-generate/index.ts:36` | **Parameters:** - `ctx`: import("C:/Users/chris/git/archlette/src/core/types").PipelineContext — - Pipeline context with configuration, logging, and validated IR --- ##### `loadDefaultTheme()` Load the default Structurizr theme from templates directory | Field | Value | | --- | --- | | **Type** | `function` | | **Visibility** | `private` | | **Returns** | `string` - Theme DSL content as string || **Location** | `C:/Users/chris/git/archlette/src/generators/builtin/structurizr.ts:59` | --- ##### `structurizrGenerator()` Generate Structurizr DSL from ArchletteIR | Field | Value | | --- | --- | | **Type** | `function` | | **Visibility** | `public` | | **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/generators/builtin/structurizr.ts:75` | **Parameters:** - `ir`: z.infer- `node`: any --- ##### `prepareContainerData()` Prepare container data with components, code, and relationships for template | Field | Value | | --- | --- | | **Type** | `function` | | **Visibility** | `private` | | **Returns** | `any` || **Location** | `C:/Users/chris/git/archlette/src/generators/builtin/structurizr.ts:154` | **Parameters:** - `container`: z.infer- `ir`: z.infer --- ##### `prepareComponentView()` Prepare component view data for template | Field | Value | | --- | --- | | **Type** | `function` | | **Visibility** | `private` | | **Returns** | `{ containerId: any; viewName: string; relevantActors: any; components: any; }` || **Location** | `C:/Users/chris/git/archlette/src/generators/builtin/structurizr.ts:204` | **Parameters:** - `container`: z.infer- `ir`: z.infer --- ##### `prepareClassView()` Prepare class view data for template | Field | Value | | --- | --- | | **Type** | `function` | | **Visibility** | `private` | | **Returns** | `{ containerId: any; viewName: string; codeItems: any; }` || **Location** | `C:/Users/chris/git/archlette/src/generators/builtin/structurizr.ts:241` | **Parameters:** - `component`: z.infer- `ir`: z.infer --- ##### `generateAllActorRelationships()` Generate all actor-related relationships | Field | Value | | --- | --- | | **Type** | `function` | | **Visibility** | `private` | | **Returns** | `z.infer[]` || **Location** | `C:/Users/chris/git/archlette/src/generators/builtin/structurizr.ts:256` | **Parameters:** - `ir`: z.infer --- ##### `generateUniqueCodeName()` Generate a unique name for a code item to avoid naming collisions | Field | Value | | --- | --- | | **Type** | `function` | | **Visibility** | `private` | | **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/generators/builtin/structurizr.ts:303` | **Parameters:** - `code`: z.infer --- ##### `buildTechnologyString()` Build technology string from relationship metadata | Field | Value | | --- | --- | | **Type** | `function` | | **Visibility** | `private` | | **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/generators/builtin/structurizr.ts:341` | **Parameters:** - `rel`: z.infer --- ##### `sanitizeId()` Sanitize ID for DSL (remove special characters, convert to valid identifier) | Field | Value | | --- | --- | | **Type** | `function` | | **Visibility** | `private` | | **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/generators/builtin/structurizr.ts:357` | **Parameters:** - `id`: string --- ##### `escapeString()` Escape special characters in strings for DSL Structurizr DSL doesn't support \n escape sequences in strings, so we replace newlines with spaces for cleaner output. | Field | Value | | --- | --- | | **Type** | `function` | | **Visibility** | `private` | | **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/generators/builtin/structurizr.ts:367` | **Parameters:** - `str`: string ---

---
