renderers — Code View¶
← Back to Container | ← Back to System
Component Information¶
| Field | Value |
|---|---|
| Component | renderers |
| Container | Application |
| Type | module |
| Description | Render stage of the AAC pipeline | Mermaid image renderer | PlantUML image renderer | Structurizr DSL export renderer | Structurizr direct image renderer |
| --- |
Code Structure¶

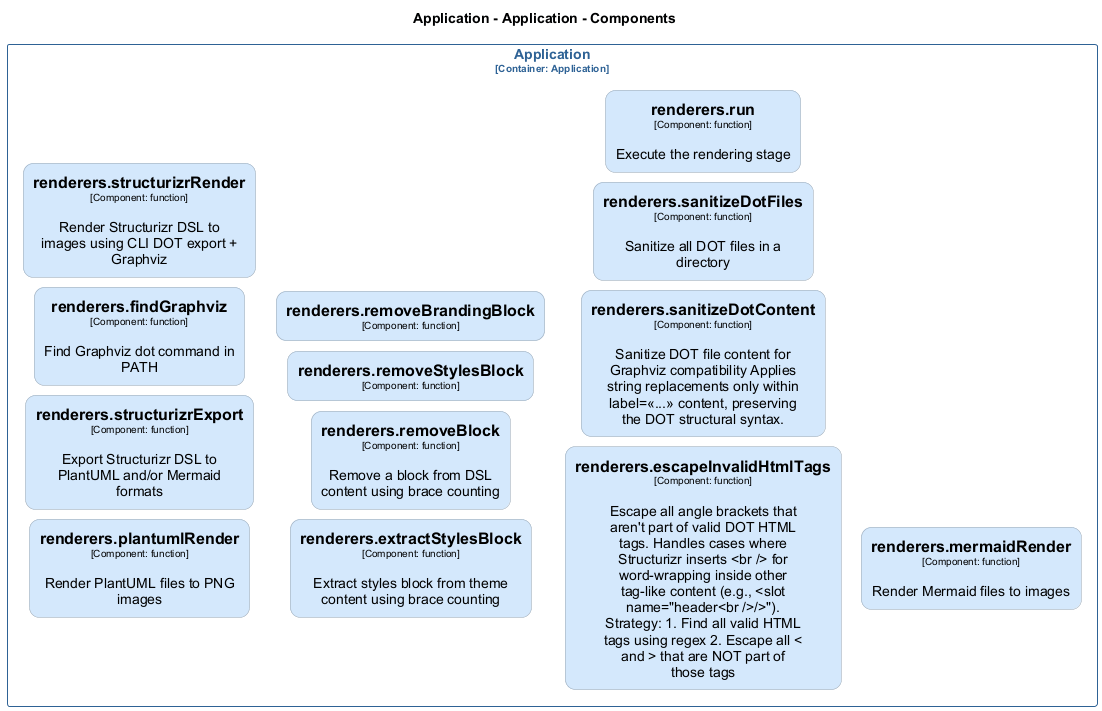

Class Diagram¶
Code Elements¶
13 code element(s)
#### Functions ##### `run()` Execute the rendering stage | Field | Value | | --- | --- | | **Type** | `function` | | **Visibility** | `public` | | **Async** | Yes || **Returns** | `Promiseimport("C:/Users/chris/git/archlette/src/core/types").PipelineContext — - Pipeline context with configuration, logging, and DSL file location
---
##### `mermaidRender()`
Render Mermaid files to images
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Async** | Yes || **Returns** | `Promiseimport("C:/Users/chris/git/archlette/src/core/types").PipelineContext- `node`: any
---
##### `plantumlRender()`
Render PlantUML files to PNG images
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Async** | Yes || **Returns** | `Promiseimport("C:/Users/chris/git/archlette/src/core/types").PipelineContext
---
##### `structurizrExport()`
Export Structurizr DSL to PlantUML and/or Mermaid formats
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Async** | Yes || **Returns** | `Promiseimport("C:/Users/chris/git/archlette/src/core/types").PipelineContext- `node`: any
---
##### `findGraphviz()`
Find Graphviz dot command in PATH
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/renderers/builtin/structurizr-render.ts:41` |
**Parameters:**
- `log`: { debug?: (msg: string) => void; warn?: (msg: string) => void; }
---
##### `structurizrRender()`
Render Structurizr DSL to images using CLI DOT export + Graphviz
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `public` |
| **Async** | Yes || **Returns** | `Promiseimport("C:/Users/chris/git/archlette/src/core/types").PipelineContext- `node`: any
---
##### `extractStylesBlock()`
Extract styles block from theme content using brace counting
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/renderers/builtin/structurizr-render.ts:267` |
**Parameters:**
- `content`: string
---
##### `removeBlock()`
Remove a block from DSL content using brace counting
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/renderers/builtin/structurizr-render.ts:293` |
**Parameters:**
- `content`: string- `blockName`: string
---
##### `removeStylesBlock()`
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/renderers/builtin/structurizr-render.ts:319` |
**Parameters:**
- `content`: string
---
##### `removeBrandingBlock()`
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/renderers/builtin/structurizr-render.ts:323` |
**Parameters:**
- `content`: string
---
##### `escapeInvalidHtmlTags()`
Escape all angle brackets that aren't part of valid DOT HTML tags.
Handles cases where Structurizr inserts for word-wrapping inside other tag-like content (e.g.,
string- `debug`: boolean
---
##### `sanitizeDotContent()`
Sanitize DOT file content for Graphviz compatibility
Applies string replacements only within label=<<...>> content,
preserving the DOT structural syntax.
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `string` || **Location** | `C:/Users/chris/git/archlette/src/renderers/builtin/structurizr-render.ts:410` |
**Parameters:**
- `content`: string- `debug`: boolean
---
##### `sanitizeDotFiles()`
Sanitize all DOT files in a directory
| Field | Value |
| --- | --- |
| **Type** | `function` |
| **Visibility** | `private` |
| **Returns** | `void` || **Location** | `C:/Users/chris/git/archlette/src/renderers/builtin/structurizr-render.ts:501` |
**Parameters:**
- `dotDir`: string- `debug`: boolean
---
