Architecture Overview

Understanding the system design and architecture.

System Context

Static website built with modern web technologies, deployed to CDN edge networks for optimal performance.

graph TB
    User[User Browser]
    CF[Cloudflare Pages/Edge]
    Pages[GitHub Pages]
    Repo[GitHub Repository]

    User --> CF
    CF --> StaticSite[Static HTML/CSS/JS]
    User --> Pages
    Pages --> Docs[Documentation Site]
    Repo --> Actions[GitHub Actions]
    Actions --> CF
    Actions --> Pages

Architecture Principles

1. Static-First

Benefits: - No server required - infinite scalability - Excellent performance - pre-rendered HTML - Low cost - free tier deployments

Trade-offs: - No dynamic server logic - Content updates require rebuild

2. Island Architecture

Interactive components are isolated "islands" of interactivity in a static sea:

---
// Server-rendered (zero JS)
---

<div>
  <h1>Static Content</h1>

  <!-- Island: Interactive component -->
  <ThemeToggle client:idle />

  <p>More static content</p>
</div>

Hydration Strategies: - client:idle - Load when browser is idle (ThemeToggle) - client:visible - Load when component enters viewport (PlantUMLDiagram)

3. Component-Based

React components for reusable UI:

src/components/
├── ThemeToggle.tsx      # Dark mode toggle
├── TechStack.tsx        # Tech stack display
├── CodeBlock.tsx        # Syntax highlighting
├── PlantUMLDiagram.tsx  # PlantUML diagrams
└── AnimatedGrid.tsx     # Animated backgrounds

4. File-Based Routing

Pages auto-route based on file structure:

src/pages/
├── index.astro         → /
├── about.astro         → /about
├── projects.astro      → /projects
├── architecture.astro  → /architecture
├── contact.astro       → /contact
└── 404.astro          → 404 error

System Design

Build Process

graph LR
    Source[Source Files] --> Astro[Astro Compiler]
    Astro --> HTML[Static HTML]
    Astro --> Vite[Vite Bundler]
    Vite --> JS[JavaScript Bundles]
    Vite --> CSS[CSS Files]
    HTML --> Dist[dist/]
    JS --> Dist
    CSS --> Dist
    Dist --> Deploy[Deployment]

Data Flow

sequenceDiagram
    participant User
    participant Browser
    participant CDN

    User->>Browser: Navigate to URL
    Browser->>CDN: Request HTML
    CDN->>Browser: HTML (cached)
    Browser->>Browser: Parse HTML
    Browser->>CDN: Request CSS
    CDN->>Browser: CSS (cached)
    Browser->>CDN: Request JS (if needed)
    CDN->>Browser: JS (cached)
    Browser->>Browser: Hydrate components
    Browser->>User: Display page

Component Architecture

Layout System

src/layouts/
└── Layout.astro       # Base layout
    ├── <head>         # Meta tags, styles
    ├── <nav>          # Navigation with ThemeToggle
    ├── <main>         # Page content slot
    └── <footer>       # Footer

Styling Architecture

Tailwind CSS 4 with custom theme:

/* global.css */
@import "tailwindcss";

@theme {
  --color-accent: oklch(70% 0.2 250);
  --font-sans: system-ui, -apple-system, sans-serif;
}

@variant dark (&:where(.dark, .dark *));

State Management

Client-Side State

React components use hooks:

import { useState, useEffect } from "react";

export default function Component() {
  const [theme, setTheme] = useState("light");

  useEffect(() => {
    const stored = localStorage.getItem("theme");
    if (stored) setTheme(stored);
  }, []);

  return <button onClick={() => setTheme("dark")}>Toggle</button>;
}

Build Architecture

Astro + Vite Configuration

// astro.config.mjs
export default defineConfig({
  site: 'https://chrislyons.dev',
  integrations: [react(), sitemap()],
  vite: {
    plugins: [tailwindcss()],
    build: {
      cssMinify: 'lightningcss',
    }
  }
});

Output Structure

dist/
├── index.html
├── 404.html
├── about/index.html
├── architecture/index.html
├── contact/index.html
├── projects/index.html
└── _astro/
    ├── [hash].css
    └── [hash].js

C4 Architecture Model

Architecture diagrams follow the C4 model and are automatically generated in CI/CD.

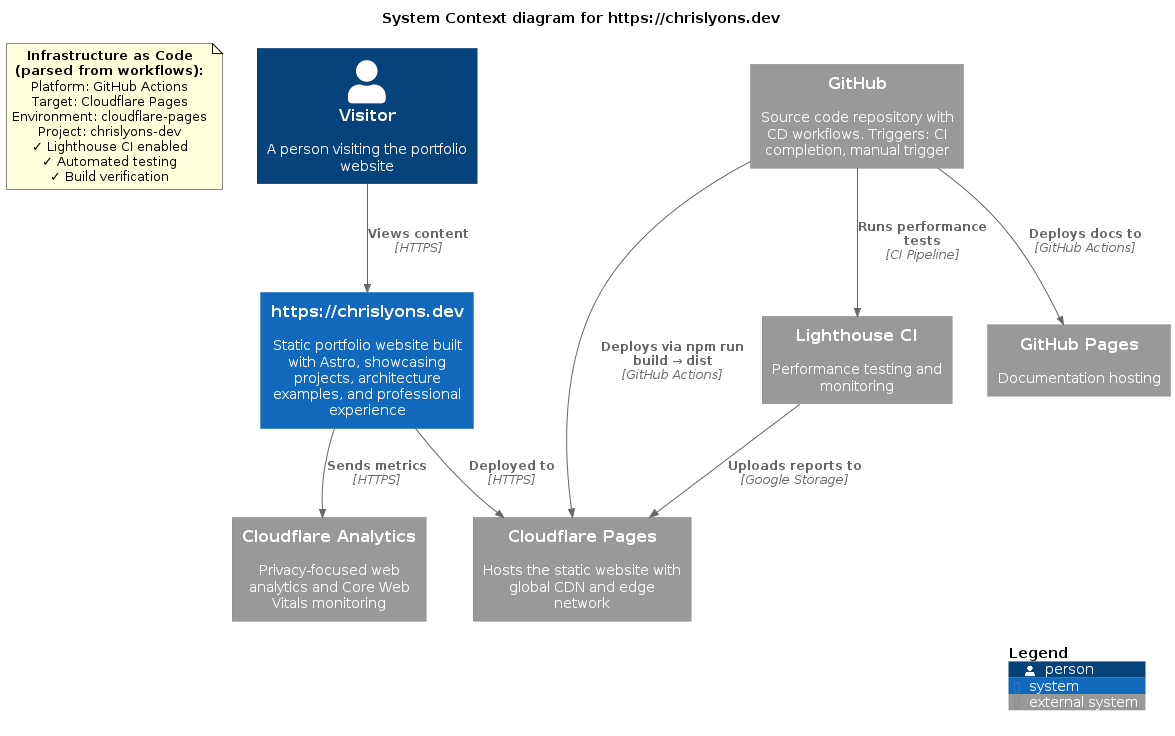

Level 1: System Context

The big picture—how the portfolio site fits into the broader ecosystem.

C4 System Context

View PlantUML Source | View SVG

Generated from: GitHub Actions workflows, wrangler.toml, package.json

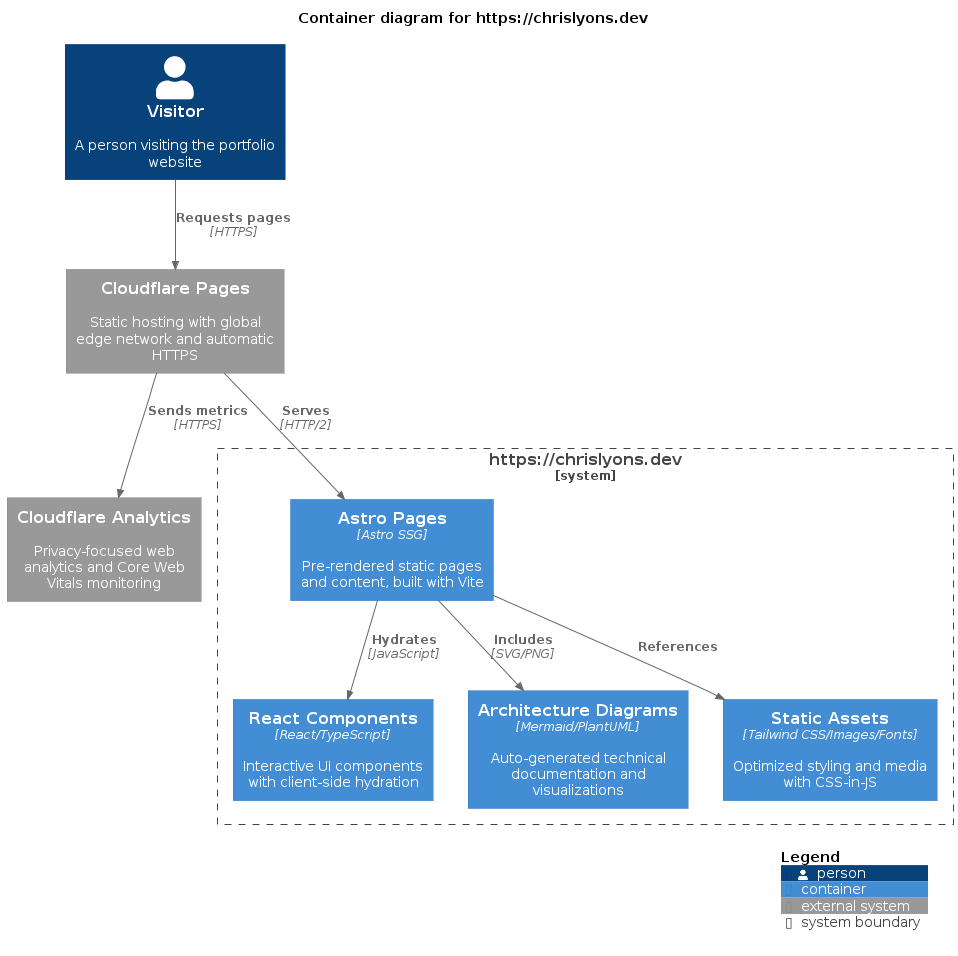

Level 2: Container Diagram

Major technical containers (applications, data stores, microservices).

C4 Container

View PlantUML Source | View SVG

Generated from: package.json dependencies, astro.config.mjs, build configuration

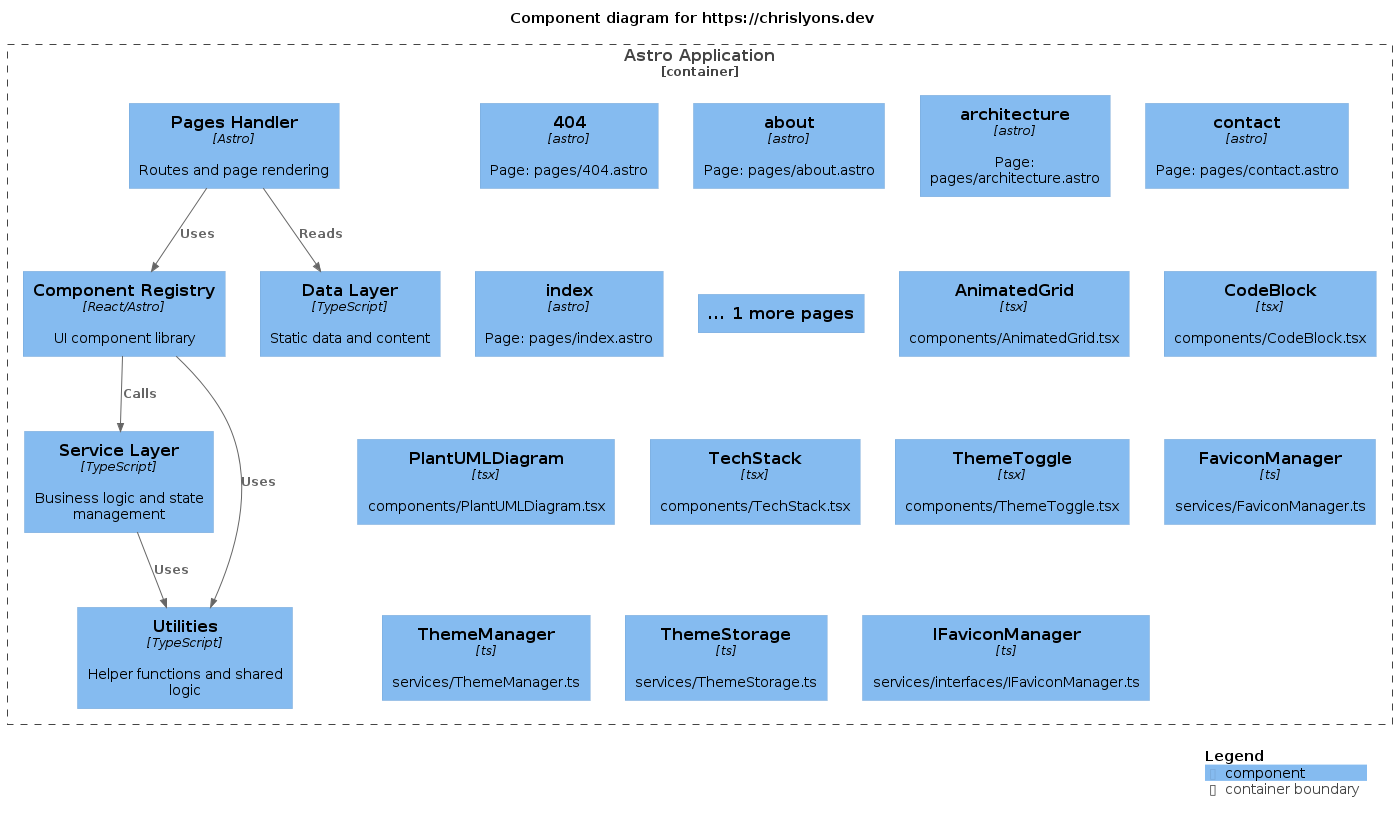

Level 3: Component Diagram

Major components and their interactions.

C4 Component

View PlantUML Source | View SVG

Generated from: Source code structure analysis (src/pages, src/components, src/services)

Level 4: Code Diagram - Theme Management

The theme management system demonstrates dependency injection and separation of concerns.

classDiagram
    class ThemeManager {
        -storage: IThemeStorage
        -faviconManager: IFaviconManager
        +getThemePreference() ThemePreference
        +applyTheme(theme: Theme) void
        +setTheme(theme: Theme) void
        +initializeTheme() Theme
        +toggleTheme(currentTheme: Theme) Theme
    }

    class IThemeStorage {
        <<interface>>
        +getTheme() Theme | null
        +setTheme(theme: Theme) void
        +clearTheme() void
    }

    class ThemeStorage {
        -storageKey: string
        +getTheme() Theme | null
        +setTheme(theme: Theme) void
        +clearTheme() void
    }

    class IFaviconManager {
        <<interface>>
        +updateFavicon(isDark: boolean) void
    }

    class FaviconManager {
        -lightFavicon: string
        -darkFavicon: string
        +updateFavicon(isDark: boolean) void
    }

    ThemeManager --> IThemeStorage : depends on
    ThemeManager --> IFaviconManager : depends on
    ThemeStorage ..|> IThemeStorage : implements
    FaviconManager ..|> IFaviconManager : implements

    note for ThemeManager "Orchestrates theme changes\nwith dependency injection"

Key Design Patterns: - Dependency Injection: ThemeManager depends on interfaces - Single Responsibility: Each class has one purpose - Singleton Pattern: Storage and favicon managers are singletons

Generated from: AST analysis of src/services/ThemeManager.ts, ThemeStorage.ts, FaviconManager.ts
